EXCEL COTE B2

Home > Products  > Hard facing > EXCEL COTE B2

EXCEL COTE B2

TYPICAL APPLICATION

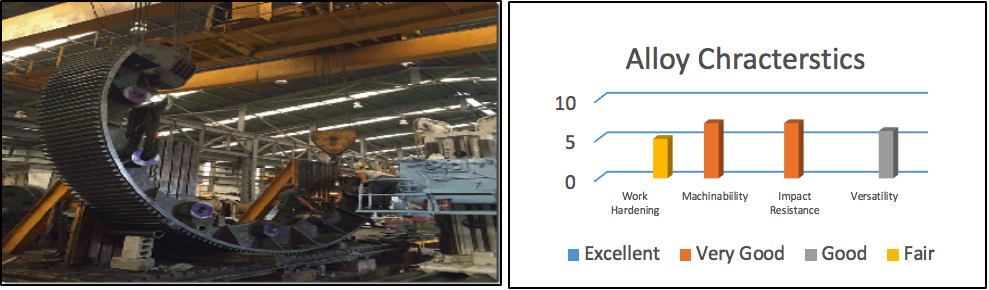

Hammers, Sprocket teeth build up, Rollers, Gear Teeth

PRODUCT FEATURES

  1. Excellent product for protective coating on all ferrous steel components.
  2. Machinable deposit.
  3. Deposit with stands high impact and does not deform under pressure.
  4. Rapid rate of deposition with all position welding capability.

RECOMMENDATIONS

Deposit resists heavy impact load without deformation. User friendly product for application subject to shock load & compounding in service. Machinable deposit makes it suitable for repairing gear teeth build up for girth gear power transmitting mechanism.

PROCEDURE

Clean weld area. Use Excel Gouge to remove damaged / fatigued metal. Preheat the base metal @ 100-150⁰C. Use Weaving based on the area to build up. Multi-pass build up can be given without cracking. Remove slag between passes. Allow the deposit to cool slowly.

RECOMMENDED AMPERAGES

SIZE (mm)AMPERAGE
5.00160 – 185
4.00130-140

TECHNICAL DATA

1. Current: AC/DC +                2. Hardness: 28-32 HRC
